Fungilab Quality + low cost= Viscolead Serie

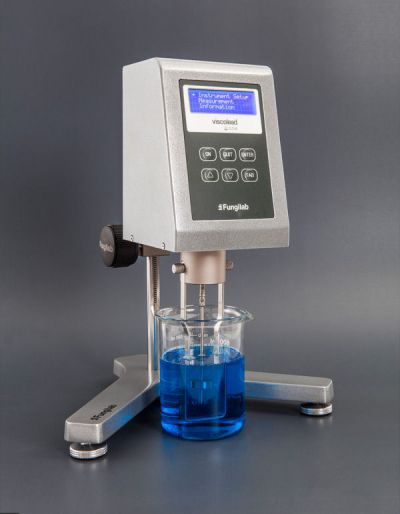

Viscolead One

Measuring of advanced viscosity. Easy to use. 2 years of garantee

Spindles

AISI 316 Stainless steel spindle, easily to identify according to its letter and number, in terms of the range of viscosity. Our units fulfills the next standards: These are the standards our units follow: BS: 6075, 5350

• BS: 6075, 5350

• ISO:2555,1652

• ASTM: 115, 789, 1076, 1084, 1286, 1417, 1439, 1638, 1824, 2196, 2336, 2364, 2393, 2556, 2669, 2849, 2983, 2994, 3232, 3236, 3716

Standard delivery

• The equipement is supplied complete with standard spindles

• 4 spindles for L model

• 6 spindles for R and H models

• Viscometer stand

• Spindle protector

• Carring case

Technical specifications

Precision: +/- 1% full scale of range

Resolution: For a minus viscosity of 10.000 cP : 0.1 cP For a major viscosity of 10.000 cP : 1 cP With the low viscosity adapter (LCP-LCP/B) : 0.01cP

Repeatability: 0.2%

Supplied at 110-240VAC, 50/60 Hz.

Accessories

APMSmall Sample Adapter with circulation jacket (without TL or TR spindles) Sample volume (6.7 - 13 ml.)Compatible with Brookfield viscometers

APM/BSmall Sample Adapter without circulation jacket (without TL or TR spindles) Sample volume (6.7 - 13 ml.)Compatible with Brookfield viscometers

LCPLow Viscosity Adapter with circulation jacket (with spindle) Sample volume (16 ml.)Compatible with Brookfield viscometers

LCP/BLow Viscosity Adapter without circulation jacket (with spindle) Sample volume (16 ml.)Compatible with Brookfield viscometers

HELDALHelix Drive Unit Accessory for measuring non-flowing substances viscosity (with spindles)

THERMOSPHERETemperature control unit up to 300 oC

PPRFast spindle switch (push plug and release)

Ranges

• (L) Low viscosity model

• (M) Medium viscosity model

• (H) High viscosity model

Low viscosity: The minimum viscosity when using a "L" range with standard spindles is 10 cP* For measurements < 10cP, its recommended to use in conunction with the low viscosity adapter (LCP or LCP/B)

==================================================================

功能特點

>數據顯示：轉速：r.p.m      轉子：SP    粘度：cP(mPa.S）     滿量程的百分比：％

>粘度測量：相對粘度和絕對粘度

>單位換算：SI單位制轉換為CGS單位

>自檢功能：粘度計自檢功能，聲光報警提醒

>量程功能：選擇好轉子和轉速組合之后，將自動計算該組合下的最大量程（AUTO-RANGE 功能可以預測當前轉速和轉子組合下的粘度最大量程）

>用戶自定義的粘度校準

> 10種語言可選擇

技術規格

• 重復性：0.2%

• 精度：滿量程的±1%

• 所有轉子均有AISI 316不銹鋼制成

• 電源：100-240VAC, 50 /60HZ

• 粘度分辨率：

         使用LCP（低粘度適配器）：0.01cP

         當粘度低于10000CP時：0.1 cP

         當粘度高于10000CP時：1cP

標準配置

主機、3級調平旋鈕、標準粘度轉子套件（L型4個，R型和H型6個）、轉子保護腿、轉子支架、電源線、校準證書、操作手冊

可選附件

小樣品量樣品適配器APM、低粘度樣品適配器LCP、高粘度樣品適配器Heldal unit、標準硅油、水浴、通用適配器、PPR快拆系統
